Lead Time Status: Current Average 20-25 Weeks
1000 kVA (480V to 208Y/120V) Transformer
Technical Specifications
Type: Ventilated
Power Rating: 1000 kVA
Enclosure: NEMA 3R
Windings: Aluminum
Frequency: 60 Hz
Temperature Rise: 150 C
Efficiency Type: NRCAN 2019
Minimum Efficiency (35%): 99.23
Taps: (2) 2.5% FCAN; (4) 2.5% FCBN
Approvals: C802.2.14 / DOE 2016, cCSAus(UL 1561 & CSA C22.2)
Enclosure: NEMA 4, 4X, 12, 12X
Windings: Copper
Frequency: 50 Hz
Temperature Rise: 115 C, 80 C
K Factors: K4, K9, K13, K20
Other
Customization Options
5500 Lbs. (2494.76 Kgs.)
Estimated Shipping Weight

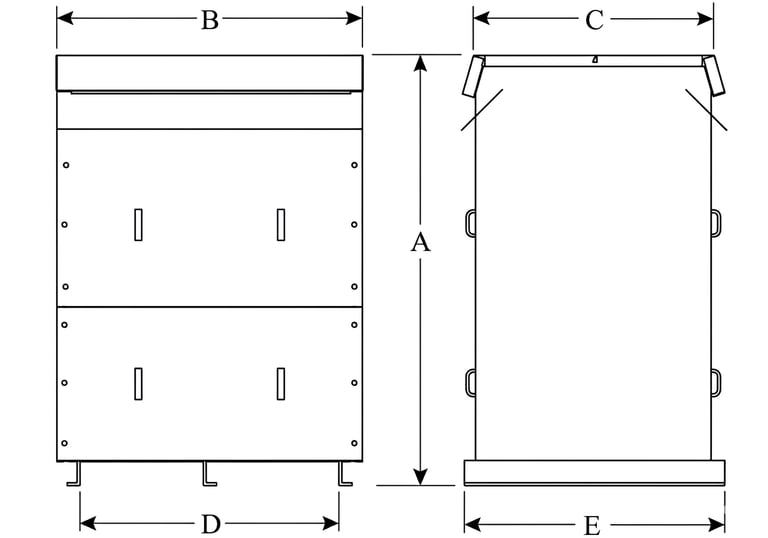

A: 81.00 in / 205.74 cm
B: 66.00 in / 167.64 cm
C: 61.00 in / 154.94 cm
D: 60.50 in / 153.67 cm
E: 38.50 in / 97.79 cm
Dimensions
Connections
Options
Wall mounting bracket and kit with drip pan available
Interested in this product?
Request a detailed quotation and our team will provide pricing, delivery timeline, and technical support.
